About Vahra Technology Fully automatic water level controller (CRAB - 2 Kit) with all protections Pump Controller
This fully automatic water level controller for dual tank this is suitable for both overhead and underground tanks. It works with MCB type starters and without starters. The device monitors water levels, protects the motor from dry run, overload, and high/low voltage, and saves water, time, and energy. Only two wires are required for installation.This controller turns the motor ON/OFF automatically, protects from high/low voltage and dry run, and displays water levels in both tanks (Low, 25%, 50%, 75%, 99%). It also indicates motor errors for quick troubleshooting. Suitable for motors up to 2HP.
Key Features & Benefits of Vahra Technology Fully automatic water level controller (CRAB - 2 Kit) with all protections Pump Controller
- Works with MCB type starters and without starter
- Monitors both overhead and underground tanks
- Fully automatic operation based on tank water level
- Only 2 wires required per tank
- Compatible with carbon sensor kit or magnetic sensor kit
- 3 operating modes: AUTO, OFF, and MANUAL
- AUTO: Automatic operation based on tank level
- OFF: All functions disabled
- MANUAL: Motor can be operated manually

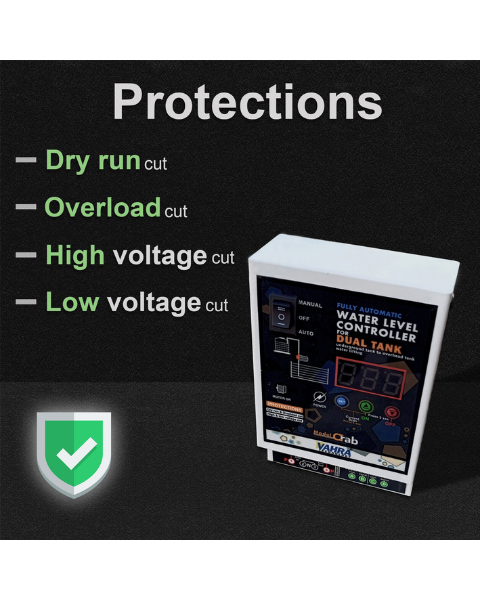

- 100% dry-run protection
- Overload/underload protection
- High/low voltage protection

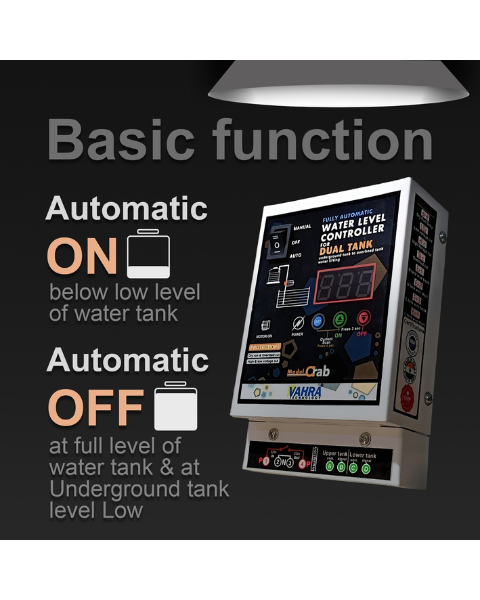

- Automatically turns the motor ON/OFF based on tank level
- Monitors water levels in both upper and lower tanks
- Motor ON LED indication
- Error indication for quick troubleshooting

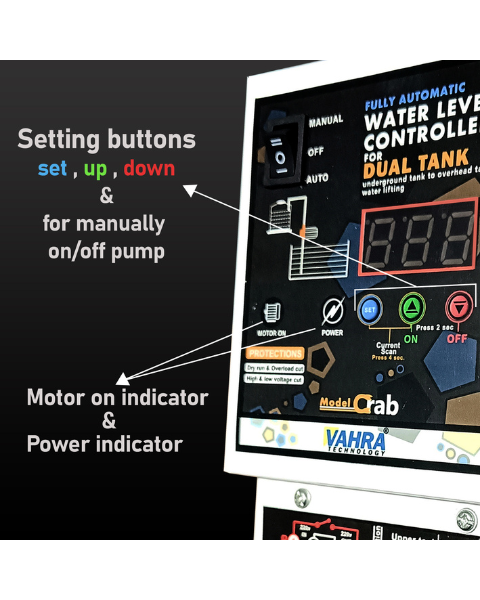

- Switch modes: Up – Manual, Center – OFF, Down – AUTO
- SET button: Access program settings
- Green UP button: Manually turns ON the motor even in AUTO mode
- Red DOWN button: Manually turns OFF the running motor
- Programmable high-voltage limit
- Programmable low-voltage limit
- Programmable dry-run percentage
- Programmable overload percentage
- Current monitoring can be enabled/disabled using buttons
Specifications
- Operating voltage: 170V AC to 290V AC
- Frequency: 50–60 Hz
- Current consumption: 6W
- Sensor operating voltage: 5V DC
- Relay rating: 30A (Heavy Duty)
- Suitable for motors up to 2 HP
- Water-resistant sensor kit
- Ultra-low sensor current (µA) for long sensor life
- Easy installation with carbon or magnetic sensor kits

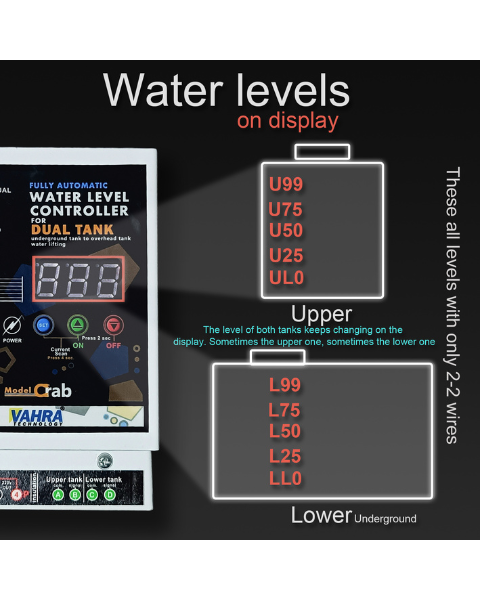

- Water level display: Low, 25%, 50%, 75%, 99% for upper and lower tanks
- Live voltage display
- Motor current display in amperes
Uses
- Automatically controls the motor based on water levels in both tanks.
- Prevents motor damage from dry running.
- Protects the motor against high/low voltage and overload/underload conditions.
- Helps maintain the required water level automatically.
- Allows the motor to be operated manually whenever required.
- Allows users to monitor upper and lower tank water levels.
- Displays live voltage and motor current for easy monitoring.
- Helps identify motor and sensor problems through error codes.
- DRD: Dry run delay
- LOC: Low voltage cut
- HIC: High voltage cut
- OLC: Overload cut
- ER1: Upper tank wire break
- ER2: Upper tank wire short
- ER3: Lower tank wire break
- ER4: Lower tank wire short
- Allows users to customize protection settings according to their requirements.
Additional Information
Accessories:

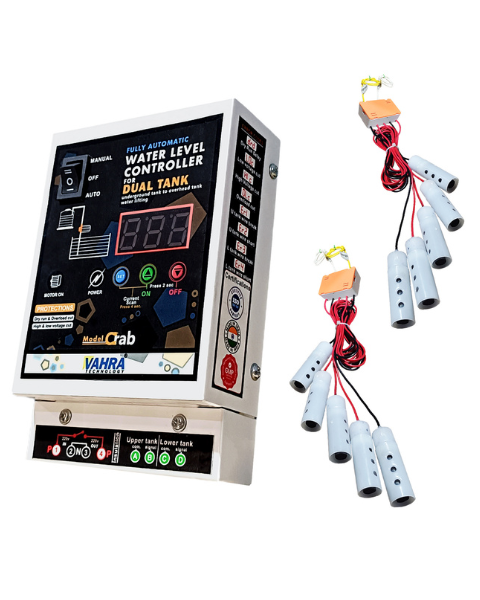

- 1 Water Level Controller – Model CRAB
- 2 Sensor Kits
- 2 Sensor Kit Distancers
- 2 Connectors
- 20 Tie Clamps
- 2 Gitti Screws

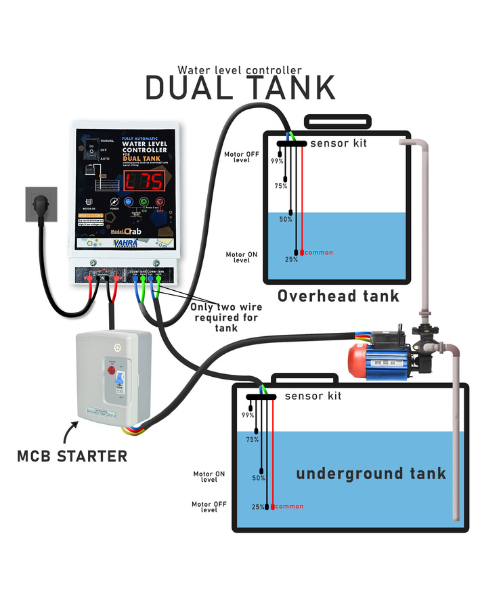

- 1 Fitting Diagram
- 1 Warranty Card
- Company Contact Details
