About Vahra Technology tank water level indicator with alarm (CROW) Pump Controller

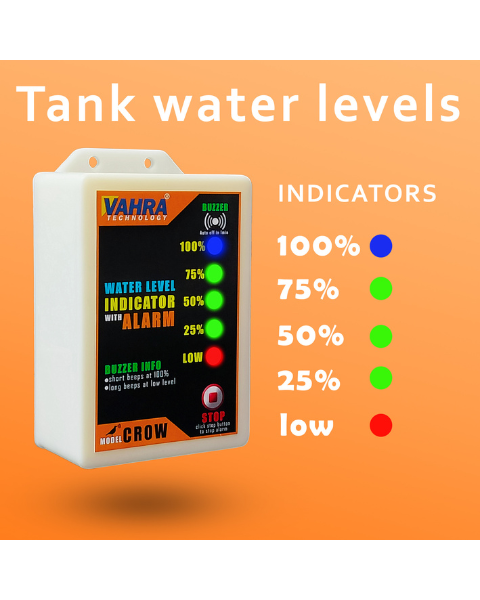

The CROW Tank Level Indicator is suitable for all types of tanks and provides visual and audible alerts for low and full tank levels. It works with metal sensor kits and requires only two wires for installation. Easy to install and compatible with plastic and cement tanks.This tank level indicator shows the water level using LEDs: Low, 25%, 50%, 75%, 100%. It emits a medium single beep after 10 seconds (repeating 30 times) when the tank level is low, and a continuous high beep for 1 minute when the tank is full. You can stop the beep once by pressing the button.
Key Features & Benefits of Vahra Technology tank water level indicator with alarm (CROW) Pump Controller
- Suitable for all types of tanks
- Provides Low and Full Tank Alarms
- Works with metal sensor kits
- 2-mode operation: AUTO / OFF
- AUTO: Automatic tank monitoring
- OFF: All alarms disabled

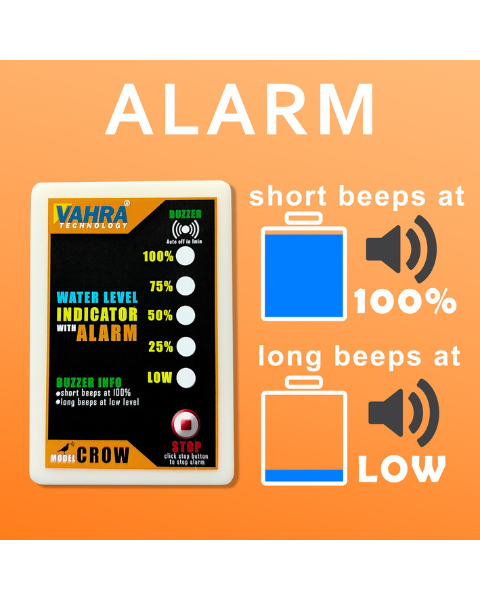

- Low-level alarm: Medium single beep after 10 seconds, repeating up to 30 times
- Full-tank alarm: Continuous high beep for 1 minute
- Beep can be stopped temporarily by pressing the button
- Low LED: Red
- 25% LED: Green
- 50% LED: Green
- 75% LED: Green
- 100% LED: Blue
- No additional protections required for this model
Specifications
- Operating Voltage: 170V AC to 290V AC
- Frequency: 50–60 Hz
- Current Consumption: 6W
- Sensor Operating Voltage: 5V DC
- Sensor Type: Stainless-steel metal sensor
- Sensor Current: µA for long sensor life
- Tank Compatibility: Plastic and cement tanks
- Installation: Easy installation

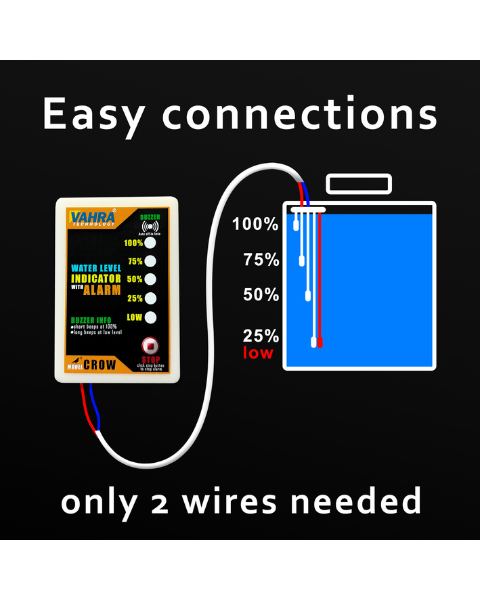

- Wiring: Only 2 wires required for the overhead tank
- Water Level Indication: Low, 25%, 50%, 75%, 100%
Uses
- Monitors the water level in the tank using LED indicators.
- Shows water levels at Low, 25%, 50%, 75%, and 100%.
- Alerts the user when the water level is low.
- Alerts the user when the tank becomes full, helping prevent overflow.
- Provides an automatic low-level alarm with repeated beeps.
- Provides a continuous full-tank alarm for 1 minute.
- Allows the user to temporarily stop the alarm by pressing the button.
- Suitable for plastic and cement tanks.
- Can be installed using only 2 wires for the overhead tank.
- Helps users monitor tank levels without manually checking the tank.
Additional Information
Accessories:
- 1 Water Level Indicator – Model CROW

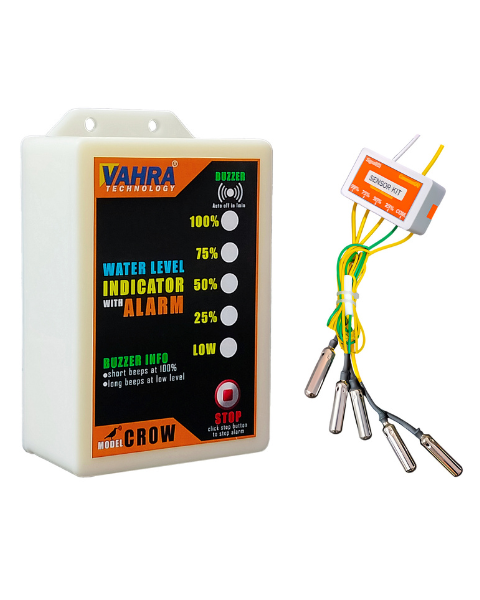

- 1 Sensor Kit
- 1 Fitting Diagram
- 1 Warranty Card
- Company Contact Details
